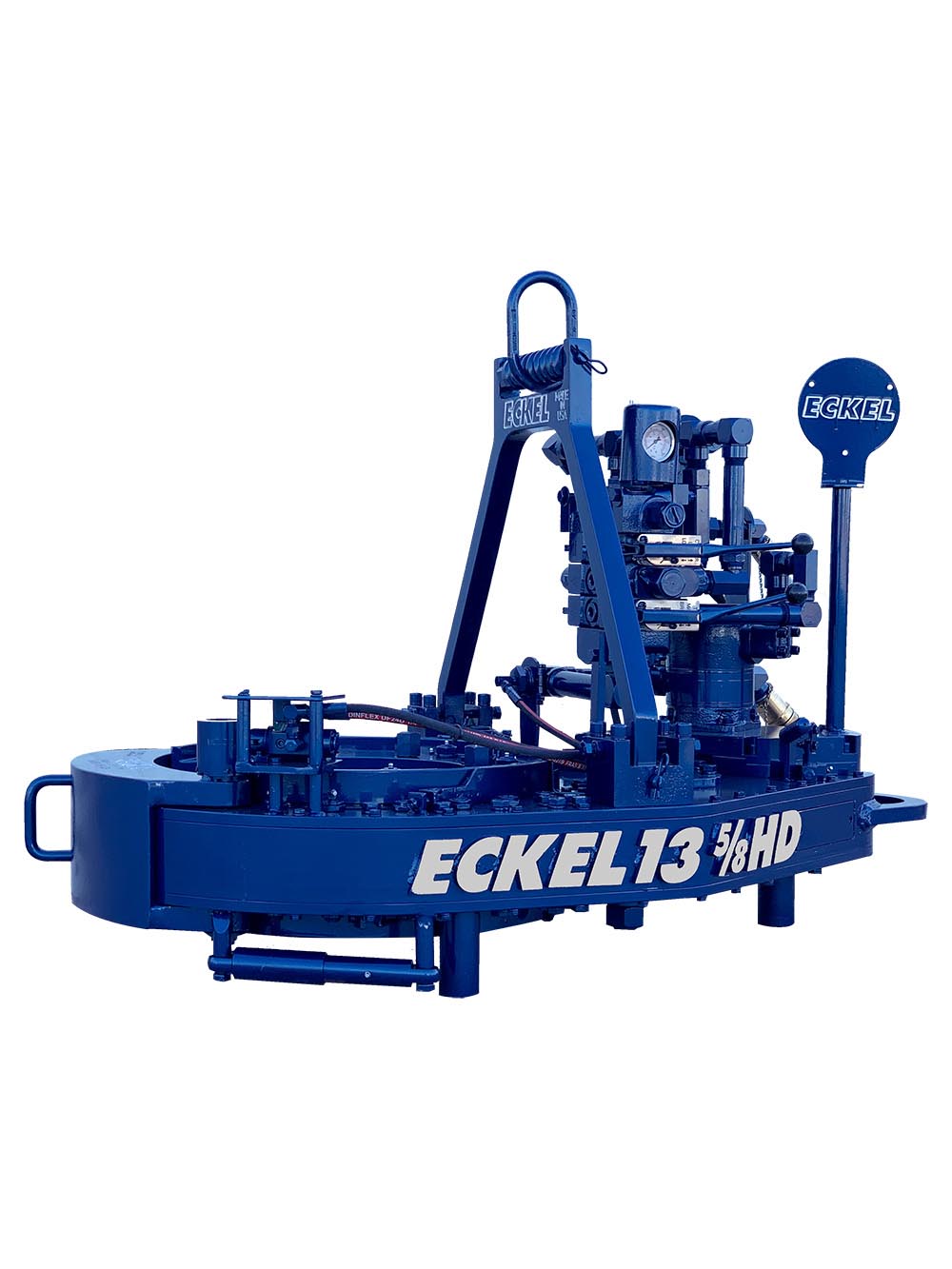

13⅝ HD-30

Casing Tong: 5½ - 13⅝ in.

Heavy duty design providing the torque you require.
Views
Features
  • 30,000 ft-lbs (40675 Nm) Maximum Torque
  • Two Speed Gear Train
  • Self Aligning Throat
  • Radial Lock Door
  • Optional: Tri-Grip® Backup
Features:
Related Documents:

Related Links:

Share:
Product Description

13⅜ HD-30 Tong

When higher torque performance than 13⅜ Standard is required, the Eckel 13⅝ HD-30 provides the peformance you need. Maximum available torque 30,000 ft-bls. When the rig working space is small and the required torque is high, the Eckel 13⅝ HD Casing Tong is your best option.

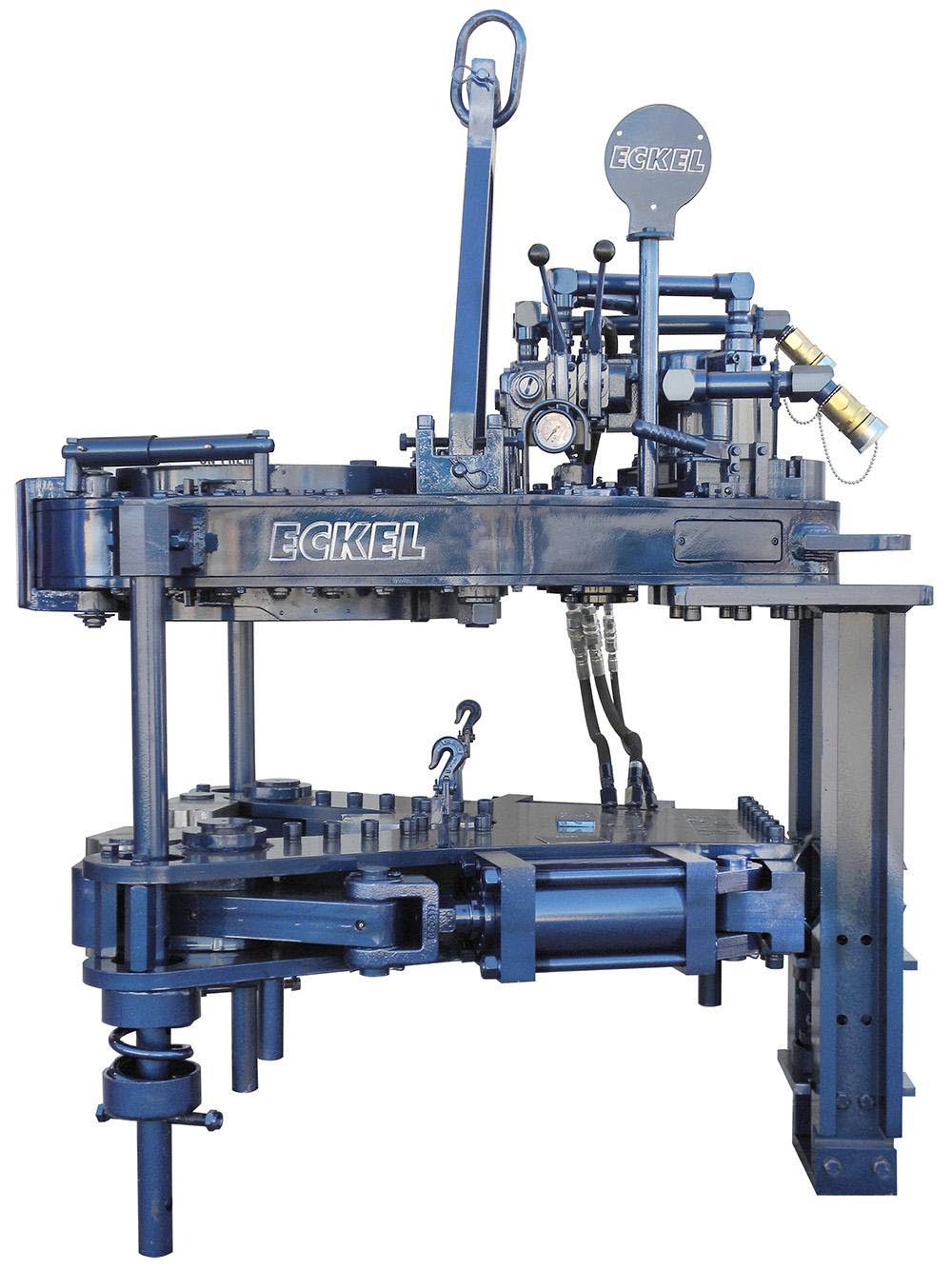

Tri-Grip® Backup

The Tri-Grip® Backup is the industry standard for reliable make-up and break-out of tubular connections that are optionally supplied with Eckel tongs. Utilizing two hydraulic cylinders and a three head arrangement ensures a slip-free operation. The backup is suspended at an adjustable level below the power tong using three hanger legs and allows the backup to remain stationary while the power tong moves vertically to compensate for the connection's thread travel. The Tri-Grip® uses two pivoting heads and one stationary. The Eckel Tri-Grip® Backup has exceptional gripping capabilities with Rig Dies when running drill pipe or optional Eckel Wrap-Around True-Grit® dies or Pyramid Fine Tooth dies for making up other types of tubular.

Technical Specifications
Tong Specifications
Capacity5½ - 13⅝ in. (139.7 -346.1 mm)
Dimensions33.5 x 58 in. (850.9 x 1473.2 mm)
Weight[1]1,600 lb (725.7 kg)
Maximum Torque @ 2,500 psi (172 bar)
High6,000 ft-lb (8134.9 Nm)
Low30,000 ft-lb (40674.5 Nm)
Maximum RPM @ 65 GPM (246 LPM)
High75 rpm
Low12 rpm
Handle Length36 in. (914.4 mm)
Backup Specifications
Backup TypeTri-Grip®
Capacity5½ - 14⅝ in. (139.6 - 371.5 mm)
Dimensions[2]44.5 x 58 in. (1130.3 x 1473.2 mm)
Weight[1][2]3,400 lb (1542.2 kg)
Load Cell Type Compression or Tension
Handle Length[2]36 in. (914.4 mm)

[1]Weight Approximate, [2]Tong and Backup
